Rubber Elbow 90 Degree Rubber Joint High Elasticity Air Tight Elbow Rubber Expansion Joint
The 90 degree rubber elbow is widely used in the flexible connection of various pipeline systems such as water supply and drainage, HVAC, metallurgy, chemical, paper making, hygiene, shipping, fire protection, pharmaceutical and other industries.
The product can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

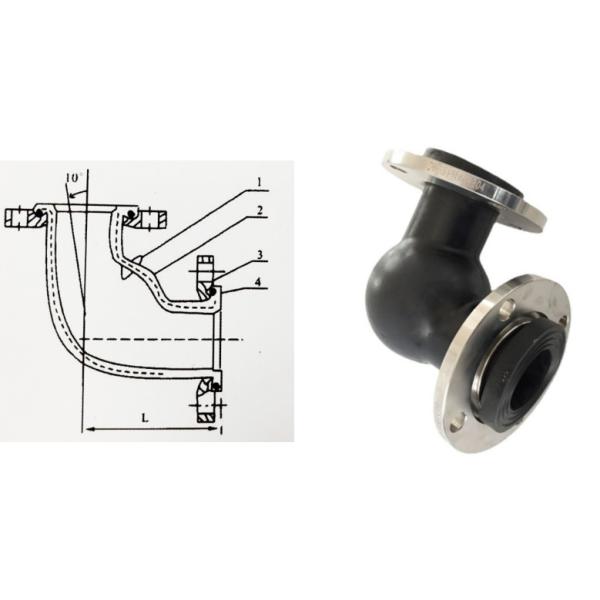

Elbow 90 Degree Rubber Joint Drawing
| NO | Name | Material |
| 1 | Outer and inner rubber layer | NR,NBR,EPDM,FKM etc |
| 2 | Frame | Nylon cord fabric |
| 3 | Flange | Q235B,Stainless steel 304,316 etc |
| 4 | Pressurized ring | steel wire strand |
Elbow 90 Degree Rubber Joint Connecting Data
| DN(mm) | Inch | Length(mm) | Axial compression | Axial extension | Radial displacement |
| 50 | 2 | 140 | 20 | 20 | 16 |
| 65 | 2 1/2 | 140 | 20 | 20 | 16 |
| 80 | 3 | 150 | 20 | 20 | 16 |
| 100 | 4 | 160 | 20 | 20 | 16 |
| 125 | 5 | 180 | 20 | 20 | 16 |
| 150 | 6 | 200 | 20 | 20 | 16 |
| 200 | 8 | 230 | 20 | 20 | 16 |
| 250 | 10 | 280 | 20 | 20 | 16 |
| 300 | 12 | 305 | 20 | 20 | 16 |
Data above is only for reference, if you want much more information, please contact us.
Noted:We have various types of molds and multiple sets rubber vulcanizing equipment, which can meet mass production and customization requirements.
Performance characteristics
- Small size, light weight, good elasticity, easy installation and maintenance.
- It can produce lateral, axial and angular displacement during installation, and is not restricted by the pipe being non-concentric and the flange being non-parallel.
- It can reduce the structure-transmitted noise during operation and has strong vibration absorption ability.

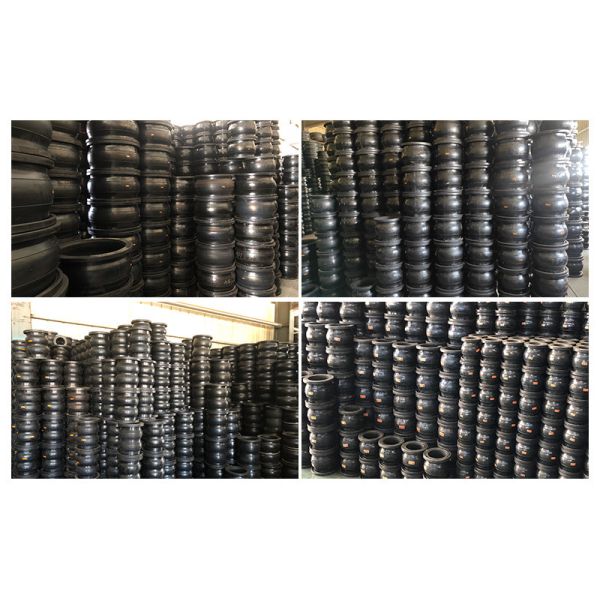

Sphere Inventory
FAQ
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be made by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory.
Our factory is located Gongyi city,Henan province,China mainland.
